Description

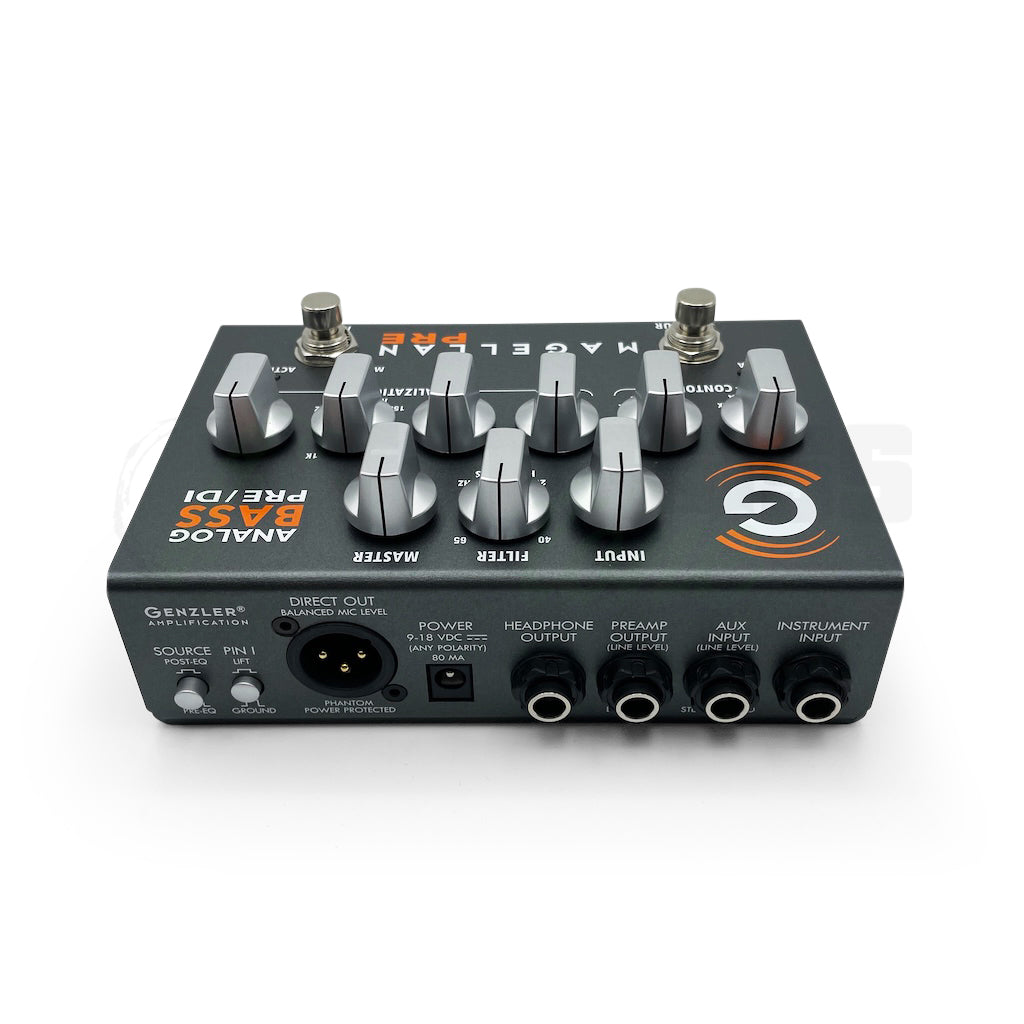

preamp pedal Genzler Magellan Preamp/DI Bass PedalSTUDIO QUALITY CIRCUITRY DIVERSE ARRAY OF TONES AVAILABLE THE PREAMP SECTION OF THE MAGELLAN SERIES IN A STOMPBOX FREE SHIPPING IN THE USA EXPERT TECHNICAL SUPPORT IN STOCK MEANS IN STOCK DESCRIPTION The Magellan Preamp DI Pedal brings the performance and preamp feature set of Genzler's popular Magellan series bass amps into a powerful, feature laden, compact bass preamp DI pedal. From natural, pristine, transparent reproduction of the bass instrument
STUDIO QUALITY CIRCUITRY
DIVERSE ARRAY OF TONES AVAILABLE
THE PREAMP SECTION OF THE MAGELLAN SERIES IN A STOMPBOX
DESCRIPTION
The Magellan® Preamp/DI Pedal brings the performance and preamp feature set of Genzler's popular Magellan series bass amps into a powerful, feature-laden, compact bass preamp/DI pedal. From natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with a “weighted feel to the notes”, the Magellan Preamp/DI Pedal provides the tonal palette needed to cover all of the bassist’s tone requirements.
The Magellan® Preamp/DI Pedal is an all-analog full featured preamp pedal with a wide-range input gain control, 3-band equalization with sweepable mids, Genzler's unique foot switchable dual curve adjustable contour circuits, foot switchable mute circuit, aux input, headphone output, balanced/unbalanced main output and balanced XLR direct output.
This compact, lightweight pedal brings all of the tone and versatility of Genzler's Magellan series bass amplifier designs into a small pedal format.
This is exactly what players have come to expect from the Genzler® design team — performance, versatility, and reliability. This new model continues the collaboration of the Genzler Amplification design team and Andy Field, former Genz Benz engineer. Together they possess decades of innovative audio product design and manufacturing expertise.
This pedal ships promptly and directly from Genzler.
TECHINCAL
Dimensions (with Knobs, Feet & Jack):
6.0” [15.2cm] Long
4.3” [11.0cm] Deep
2.5” [6.3cm] High
Weight: 1.1 Lbs. [0.5kg]
Operates on any Power Supply Voltage:
9 – 18VDC, either Polarity (power supply not included)
Preamp Output: Capable of driving a Separate Power Amp
FEATURES
Wide Range Input Circuitry
Input and Master Volume Controls
Variable High Pass Filter
Switchable Dual Contours (A & B)
Independent Contour Controls
Same Magellan 3 Band EQ w/Sweepable Mids
Signal mute
Aux Input
Headphone Output
Studio Quality Direct Out Circuitry w/Pre or Post and GND Lift
Lightweight Aluminum Chassis Construction
SPECIFICATIONS
POWER SUPPLY: 9VDC-18VDC (low noise type), either polarity, 80mA
POWER SUPPLY JACK: 2.1mm center pin with 5.5mm barrel (standard Boss pedal dimensions)
INPUT IMPEDANCE: 1 Meg Ohm
INPUT SENSITIVITY (nominal): -10dBu to -20dBu (instrument level)
INPUT SENSITIVITY (maximum): >0dBu (9V supply), >+5dBu (12V supply), >+10dBu (18V supply)
HIGH PASS Filter Range: 25Hz – 120hz, 18dB/oct variable
EQ Filter Points:
- LOW: +/-15dB shelving below 75 Hz
- MID: +/-15dB peak-dip, between 150Hz – 2.8kHz
- HIGH: +/-15dB shelving above 6kHz
PREAMP OUTPUT IMPEDANCE: 1k ohm (unbalanced), 2k ohm (balanced)
PREAMP OUTPUT LEVEL (nominal): -10dBu to +4dBu (line level)
PREAMP OUTPUT LEVEL (unbalanced maximum): +8dBu (9V supply) +12dBu (12V supply), +16dBu (18V supply)
PREAMP OUTPUT LEVEL (balanced maximum): +14dBu (9V supply) +18dBu (12V supply), +22dBu (18V supply)
DIRECT OUTPUT LEVEL (balanced nominal): -30dBu (mic level)
DIRECT OUTPUT IMPEDANCE: 2k ohm (balanced)
AUX INPUT IMPEDANCE: 10 K Ohm
AUX INPUT LEVEL (nominal): -10dBu, stereo (sums to mono)
AUX INPUT LEVEL (maximum): +10dBu, stereo (sums to mono)
HEADPHONE OUTPUT: Drives headphones and IEM buds from 8 ohms -200 ohms, stereo output, mono signal path. (Higher impedance headphones, such as 600 ohms, will result in less output and headroom.)
